IG AD 5700 INVISIBLE Aluminium doorframe

SKU: HR280119
FOR ALL WALLS THICKER THAN 40 mm
minimalist design
for partition walls made of various materials
suitable for glass and wooden doors
various possibilities of fixing and levelling (screw, PUR foam, bracket…)
aluminium
length 5700 mm
sold by piece

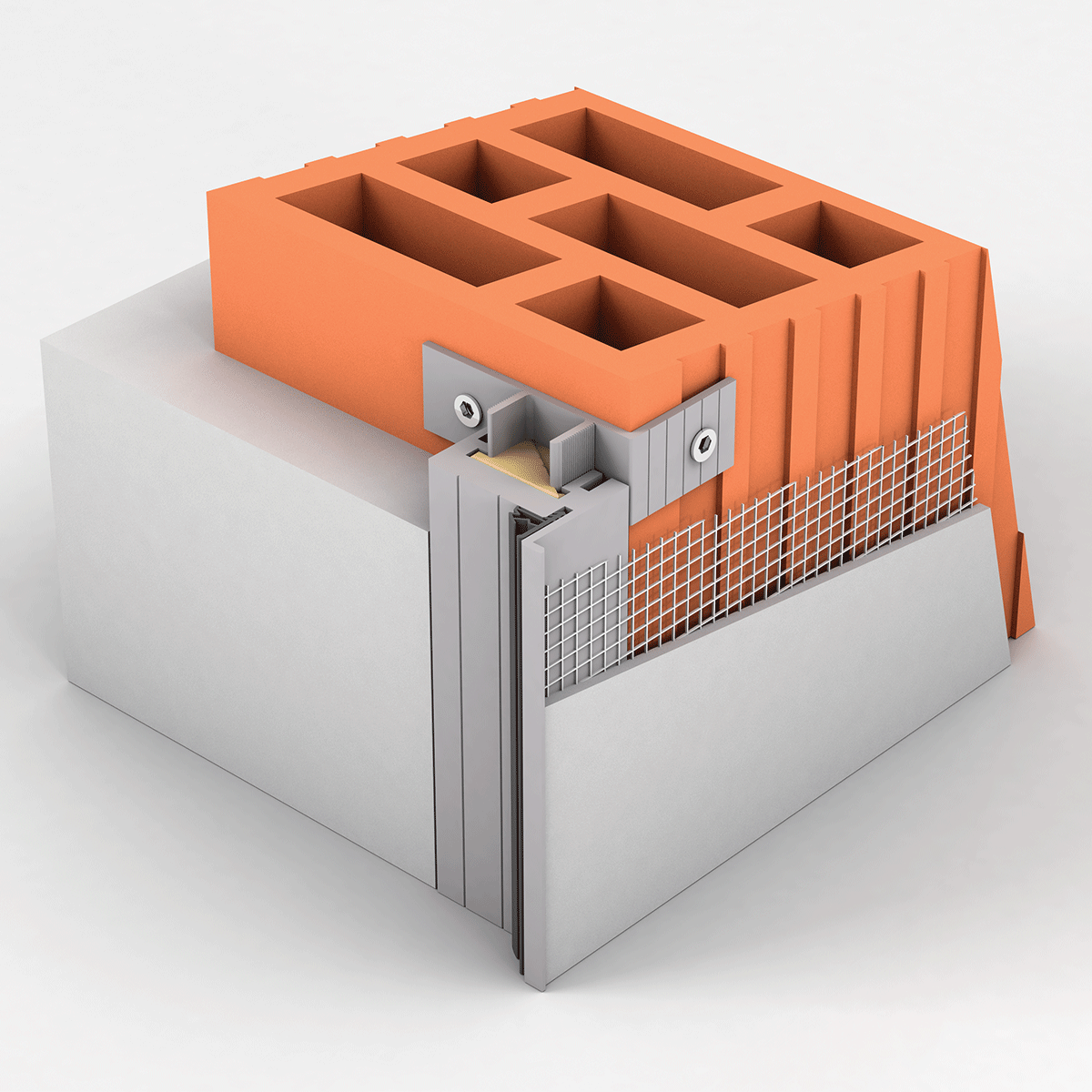

1 | BRICK WALL INSTALLATION
The door frame construction allows for several types of installation (using screws, connecting fittings and slowly expanding foam). Optionally, a special U-sub-profile can be used, which allows a fine levelling of the inclination of the door frame.

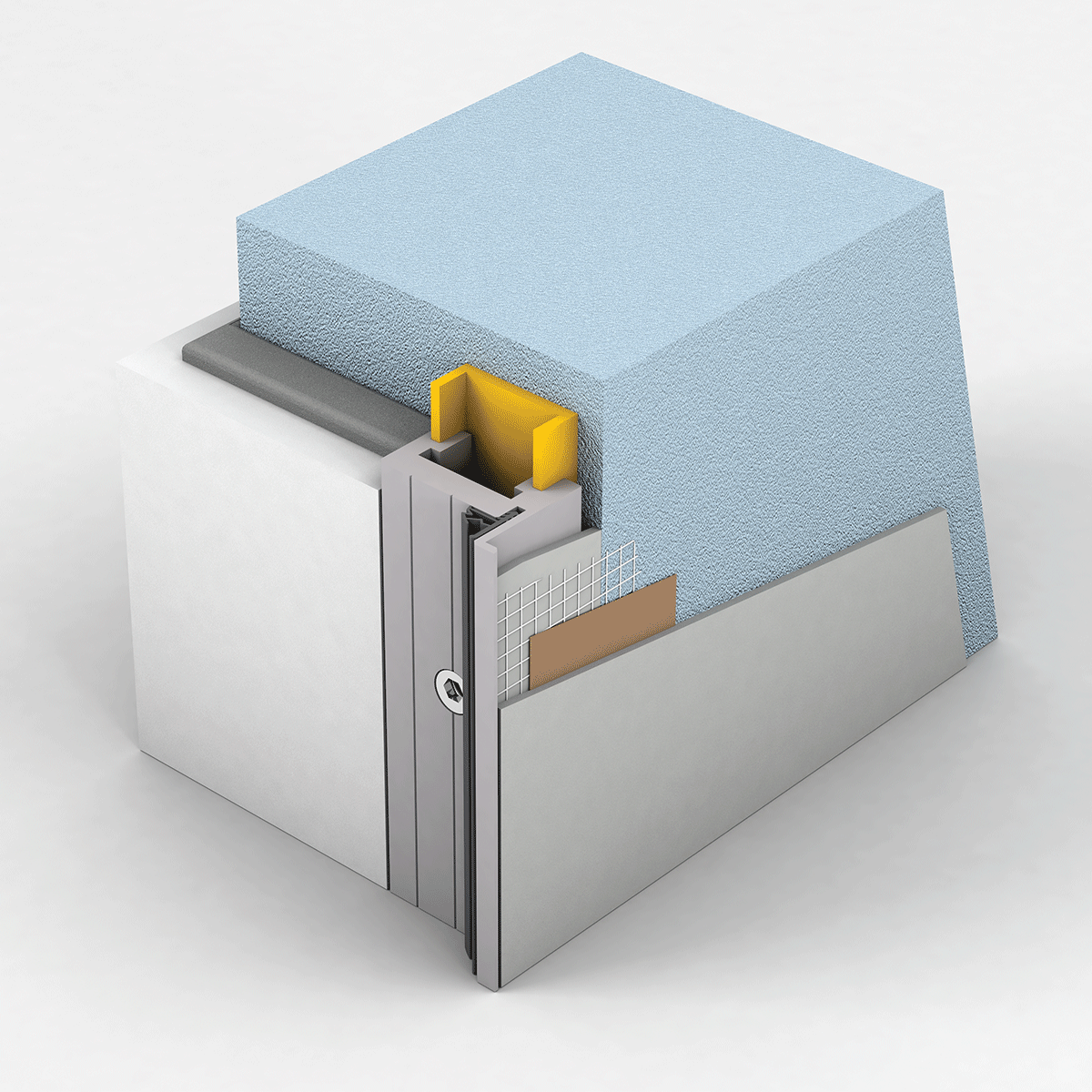

2 | SIPOREX WALL INSTALLATION
The application on porous concrete is possible as well.

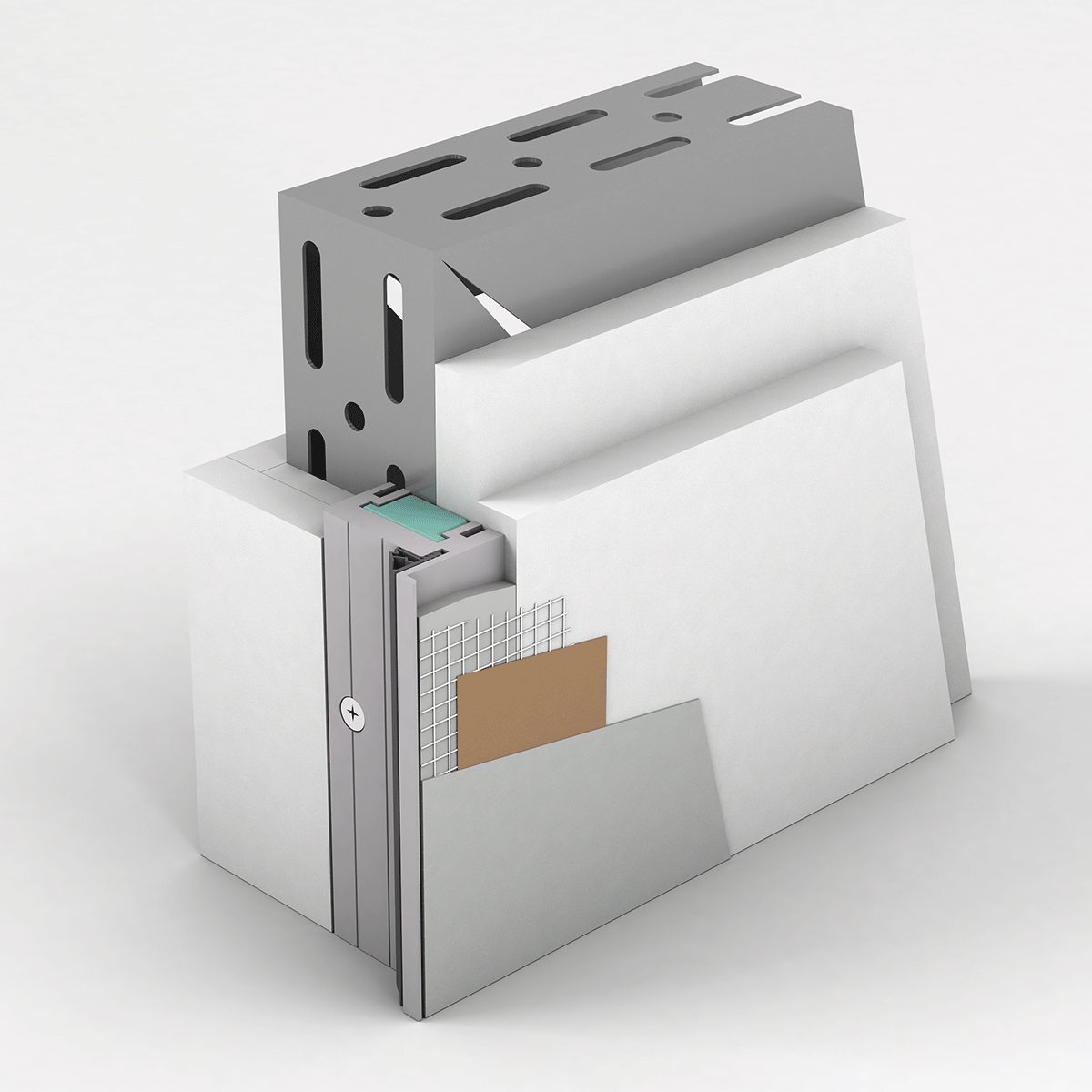

3 | KNAUF WALL INSTALLATION
Through the use of a reinforcing mesh with smoothing compound and a final layer of the paper reinforcing tape, a firm and resistant wall finish without visible couplings is obtained.

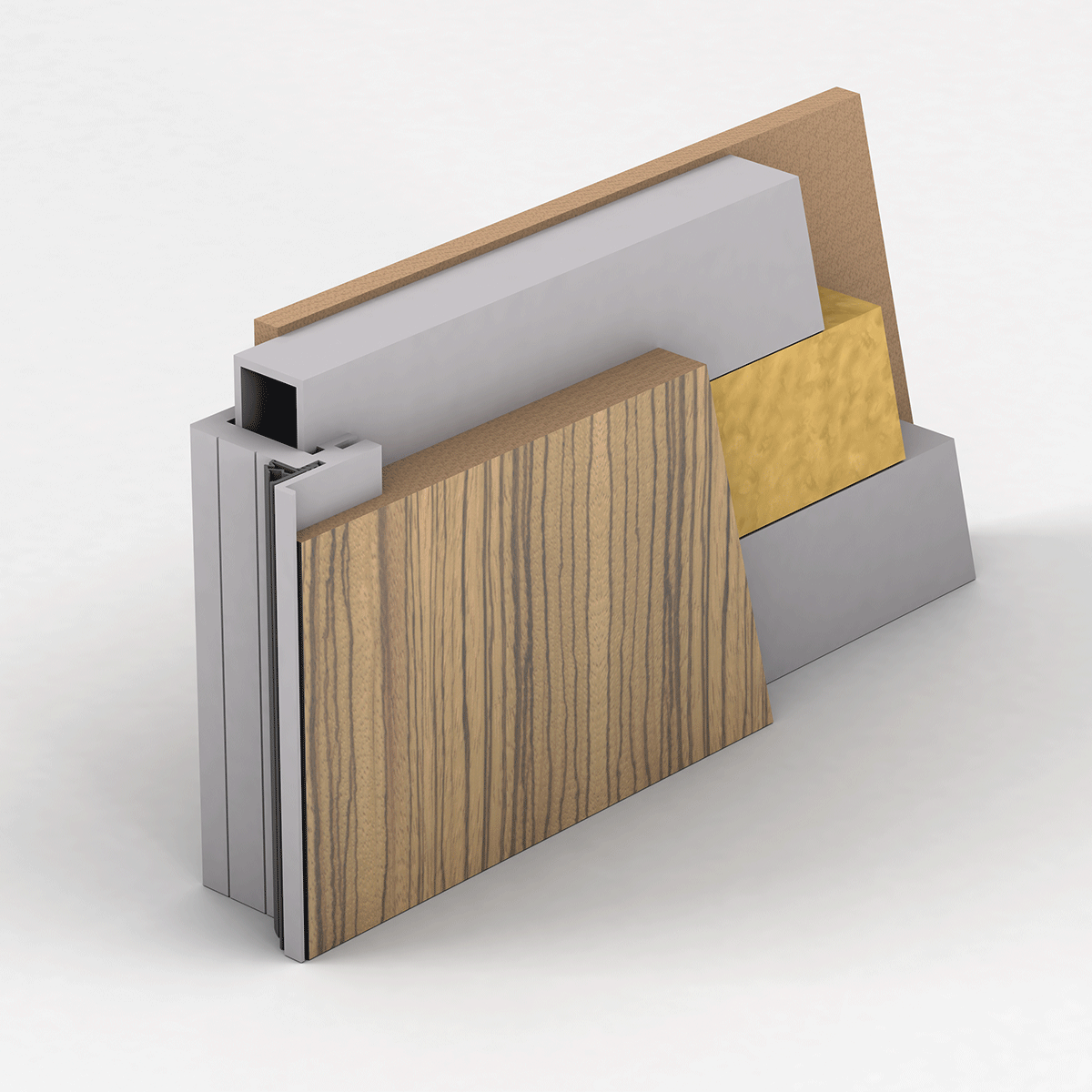

4 | MDF AND PLYWOOD PANELS INSTALLATION
Due to the small dimensions of the door frame, it is as well suitable for thinner barriers (for example on mobile homes).

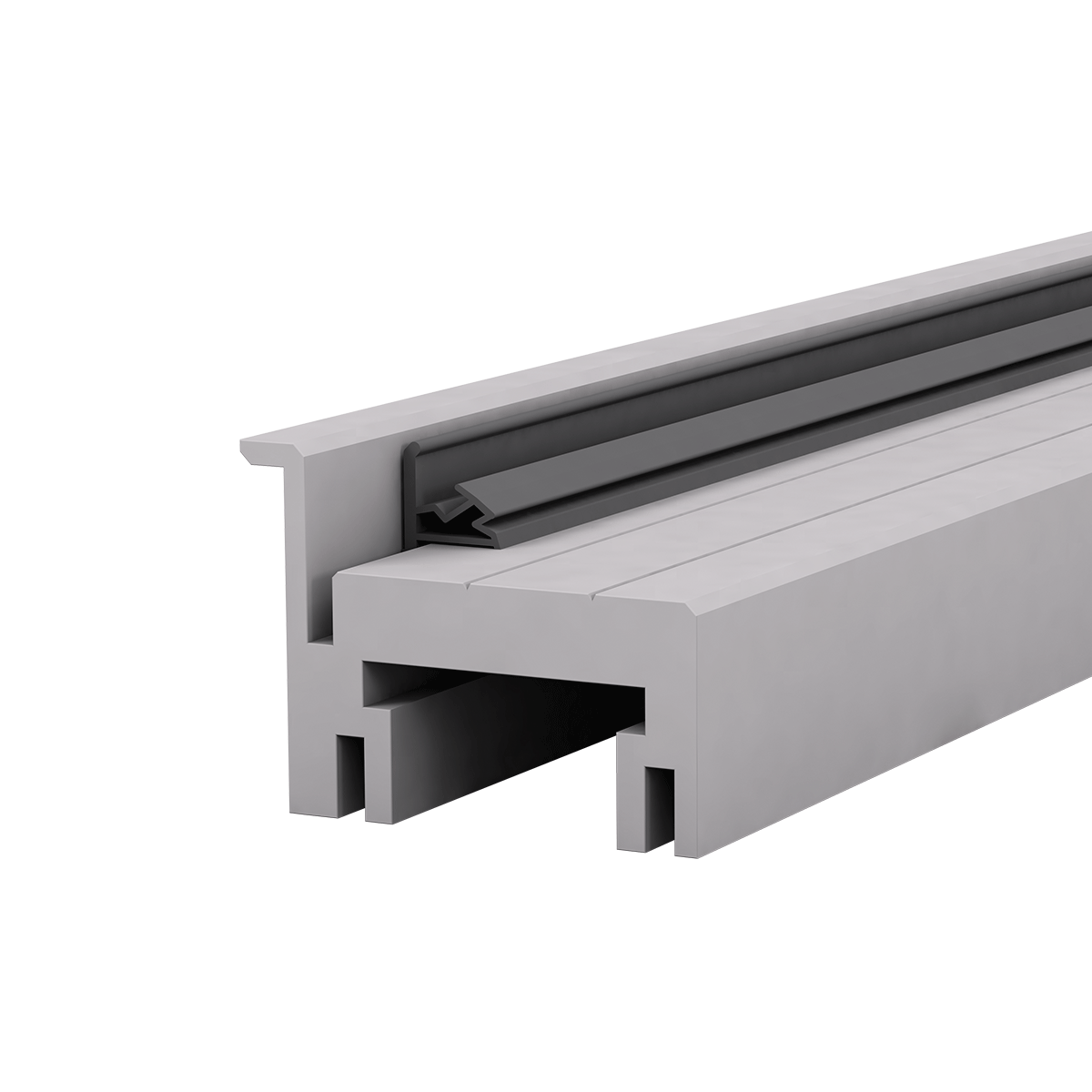

The profiles are anodised and delivered per piece of 5700 mm length.
Possible anodisation or plastic finish into the desired colour. Cutting to the correct length available.
